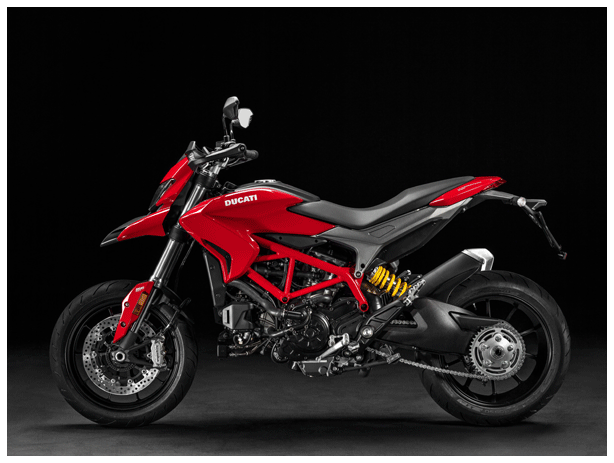

Hypermotard 939 : Get Hyped |
|
|
........
|
|
|
........Fun
has no limits. Powered by the new Testastretta 11? 113 hp engine and
with Riding Mode technology, Power Modes and the Ducati Safety Pack
with ABS and Traction Control, the Hypermotard 939 turns every road
into safely controlled, two-wheeled delight. Combining handling, horsepower
and enthusiasm, the Hypermotard 939 brings 100% enjoyment to every ride.
|
|
|
Technical
Specification
Engine Type New Testastretta 11?, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled Displacement 937 cc Bore x Stroke 94 x 67,5 mm Compression ratio 13,1:1 Power 83.1 kW (113 hp) @ 9000 rpm Torque 97.9 Nm (72.2 lb-ft) @ 7500 rpm Technical data referring to power and torque was measured on an engine test stand at Ducati. Fuel injection Magneti Marelli electronic fuel injection system. Throttle bodies with full Ride by Wire system Exhaust Single stainless steel muffler with catalytic converter and two lambda probes. |
|
|
........
|
|
 |
|
| ........ | |
 |
|
| ........ | |
|
Transmission
Gear box 6 speed Primary drive Straight cut gears, Ratio 1.85:1 Ratio 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24 Final drive Chain, Front sprocket 15, Rear sprocket 43 Clutch Wet multiplate clutch mechanically operated, self-servo action on drive, slipper action on over-run Chassis Frame Tubular steel Trellis frame Front suspension 43mm usd forks Front wheel 10-spoke in light alloy 3.50" x 17" Front Tyre Pirelli Diablo Rosso II, 120/70 ZR17 Rear suspension Progressive linkage with adjustable spring preload and rebound damping Sachs monoshock. Aluminium single-sided swingarm Rear wheel 10-spoke in light alloy 5.50" x 17" Rear tyre Pirelli Diablo Rosso II, 180/55 ZR17 Front wheel travel 170 mm (6.7 in) Rear wheel travel 150 mm (5.9 in) Front brake 2 x 320 mm semi-floating discs, radially mounted Brembo monobloc callipers, 4-piston 2-pad, axial pump with adjustable lever, with Bosch ABS as standard Rear brake 245 mm disc, 2-piston calliper, with Bosch ABS as standard Instrumentation LCD display with Dot Matrix area Dimensions and weight Dry weight 181 kg (399 lb) Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models. Wet weight (KERB) 204 kg (450 lb) Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93). Seat height 870mm (34.2in) Wheelbase 1.493 mm (58.8 in) Rake 25,5? Trail 104mm (4.1In) Fuel tank capacity 16l - 4.2gallon (US) Number of seats Dual seat Equipments Standard Equipment Riding Modes, Power Modes, Ducati Safety Pack (ABS + DTC), RbW. Ready for anti-theft system, heated grips, sat-nav. Warranty Warranty 24 months unlimited mileage Maintenance 15,000 km (9,000 mi)/12 months service intervals Valve clearance check 30,000 km (18,000 mi) Emissions and Consumption Standard Euro 4 Consumption 5,2 l/100 km - CO2 = 123 g/km |
|
| ........ | |
 |
|
|
........
|
|
|
more
information contact :
คุณ นภัสริญ์ พรศิรเสฏฐ์ ฝ่ายประชาสัมพันธ์ โทร 08 4 387 2288. Ducatisti Co., Ltd. 842 SoiThonglor, Sukhumvit Road, www.ducatithailand.com KlongtonNua, Wattana, Bangkok 10110 Tel. + 66 2 381 8811 Fax. + 66 2 381 8810 |
|
|
........
|
|
|
........
|
|
  |
|
|
